Precise weighing solution for freight station
Customised weighing platform delivers high-precision weighing results at meat farming operation
Key facts
The original airport in Chengdu has a relatively small capacity. In order to meet the passenger and cargo throughput in the southwest China region, the construction of a new Tianfu Airport has begun. Its builder, Kunming Shipbuilding Group., chose Minebea Intec as the weighing solution provider for its cargo stations.
Application & Product
Tianfu Airport uses a total of 54 scales, from capacities of 10 to 30 tons to weigh imported and exported goods at various places like the cargo station, Customs supervision warehouse, transfer center and inspection center.
Customer benefits
- Compression load cells for highly precise and reliable weighing results
- Digital load cell which facilitates installation and maintenance
- Customised weigh platform, which can be easily inspected in a limited space
„We are very proud to provide a solution for such an advanced cargo logistics system. Our customized weighing platforms not only require less space for installation, but also provide highly precise weighing results and a high level of usercomfort due to the digital load cell being used.”
Zhou Mingxin
Project Manager Minebea Intec
Chengdu Tianfu Airport aims to use the world‘s most advanced technology in its cargo logistics system. Therefore, they started a cooperation with Kunming Shipbuilding Group as freight logistics contractor and chose Minebea Intec as provider for the matching weighing solution.

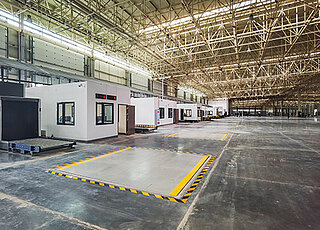

Unmanned AGV forklifts are used to complete the goods receipt, weighing, shelf /ground storage, and delivery in the standard parts area. For these tasks, Minebea Intec constructed weighing platforms with the digital load cell PR 6224– a weighing solution which is often used for vehicle weighing and reaches stability quickly, ensuring short weighing times. These load cells provide high accuracy with minimum load cell verification as high as 14,000. Combined with the mounting kit, the load cell always receives vertical force during operation, which makes it a better choice than shear-beam load cells, which are usually used in platform scales.
The AGV forklift and its supporting system automatically decelerate before going onto the scale and determine whether the scale is zeroed. While waiting for being weighed, the scale automatically identifies the forklift information, and read the forklift and pallet tare after weighing to obtain the net weight value. The weighing data is uploaded afterwards to the customs supervision system via the Ethernet interface that supports the MODBUS TCP/IP protocol configured on the Maxxis 5 controller. The entire process works without human supervision.
The accurate and reliable weighing and data transmission guarantees a fully automated operation.

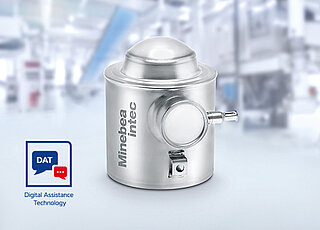

As the airport is busy with cargo in and out, efficiency and ease of use in case of maintenance are very important. The PR 6224 load cell features digital assistant technology which can easily query the status of each load cell after being connected to the Maxxis 5 controller. If any problems occur, the controller will trigger an alarm and prompt an error message. Maintenance personnel can thus arrive at the site in the shortest time and quickly identify possible problems.
Another problem which was overcome, was the lack of space. Instead of building a foundation forklift pit manhole beside the weighing platform, Minebea Intec designed the manholes on the weighing platform itself. Due to this, a possible replacement process can be dealt with swiftly and easily.
