Industrial scales SIGNUM®
The compact solution for numerous applications

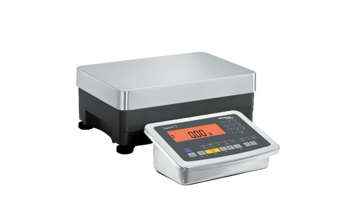

Product details Bench scale Signum®
Signum is the compact solution for numerous industries. In daily weighing, the bench scale is characterised by short measuring times, flexibility and safety. Depending on the application, the weighing indicator can be set up independently of the platform location or mounted on a pedestal. Depending on the precision level, models in Supreme, Advanced or Regular versions are available. Your advantages:
- Three intuitively operated indicators with different application levels
- Protection classes IP43 or IP65
- Various material versions, e.g. stainless steel
- Load ranges from 0.6 kg to 65 kg
- Readability from 0.001 g to 10 g
- Platforms in various designs and dimensions
- Calibration version and Ex solutions
- Large variety of interfaces
- Wide range of accessories, options and extensions
- Ready for the future of industrial automation" with our miOPC software
Applications
- Classification
- Counting
- Fill quantity control
- Filling and Dosing
- Formulation
- Statistical process control
- Statistics
- Weighing
Certifications
- EAC
- ATEX
- OIML
Specifications
Product type
Bench scales in three precision levels to suit your needs
Product handling
- Precise weighing for various applications
- Suitable for a wide range of industries
Protection class
up to IP 65
Material
Steel, stainless steel
Product enhancements
Particularly suited for uses such as:
- Automatic and manual dosing and filling
- Manual dispensing, production of mixtures
- Totalling and picking of orders
- Classing, classification and sorting by weight
- Part counts for materials management
- Simple recording of weights with logs for documentation
- Checking, for example when checking contents of pre-packaged units
- Weighing containers and vessels for storage management
Signum® Regular
- Standard SG weighing system
- Resolution up to 35,000 d
- High level of built-in overload protection
Signum® Advanced
- Mechatronic SG weighing system
- Resolutions up to 80,000 d / 150,000 d
- Both high-resolution and economical thanks to added electronic compensation
Signum® Supreme
- Monolithic EMFC weighing system
- Resolutions up to 350,000 d / 620,000 d
- Precise measurements that minimise product loss and increase profitability
- Precise measurements at all times thanks to the built-in motorised calibration weight
You need help configuring your weighing or inspection-solution?
Simply send us your questions or requests via the contact form or give us a call. We will be happy to help you.
