Weighing electronics MAXXIS 5
The Maxxis 5 programmable weighing controller has won many awards for its precision, connectivity and functionality.

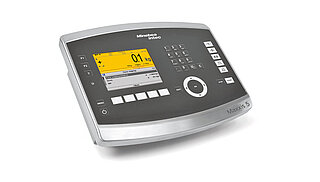

Product details Weight controller Maxxis 5
The innovative weight controller Maxxis 5 is suitable for the most diverse of applications – from multi-component dosing to one-component filling and counting right up to vehicle weighing. Versatile interface options make it compatible with almost any weighing solution – either programmed individually or supported by customised software applications.
Minebea Intec’s expert team of software engineers, in conjunction with industry specialists, have created software solutions that allow the unit to seamlessly integrate into any process. However, users who require it can utilise the easy to use IEC61131 programming language to implement their own unique functionalities.
Applications
- Fill quantity control
- Filling and Dosing
- Formulation
- Weighing
Certifications
- EAC
- ATEX
- FM
- IEC-EX
- NTEP
- OIML
Specifications
Product type
- Weighing controller
- Weighing electronics
Product handling
- Use as table-top unit or for control cabinet mounting
- Connection of up to four scales possible
IP protection class
- Cabinet housing: IP65, rear panel IP 20
- Blackbox housing: IP20
- Table-top housing: IP65
- Wall housing: IP65
Material
Stainless steel
Product enhancements
Application BASIC
Weighing
- Gross, net, tare
- Printing, Alibi memory, dialogue
Checkweighing
- Easy +/0/- functions
- Easy product databases
- Check with preset tare/tare or gross mode
Terminal function
- Connection to superordinate systems (PLC, PC etc.)
- Display of texts and dialogues
- Operation of PC or PLC application via weight controller
Application BATCH
Independent dosing device:
- Formulation-based multi-component dosing control
- Control of up to four scales (2× analogue + 2× digital)
- Manual and/or automatic multi-component dosing according to setpoint setting
- Integrated PLC for the control of analogue and digital inputs and outputs
- Comprehensive reporting for seamless documentation of the dosing results and traceability
- Remote control via field bus, OPC or Modbus TCP (incl. selection of formulation, setpoint setting, start, stop, etc.)
- Configuration of the process flow with formulation components, formulations and orders
- Different types of material for control of additional stages in the process such as stirring and heating using digital inputs and outputs
- Adjustable dosing tolerance and overrun, and values for rough and fine signals
- Incl. automatic readjustment of overrun and setpoint recalculation Storage vessel
Application COUNT
Counting:
- Input of reference unit weight
- Automatic unit weight optimisation
- Adjustable accuracy of the unit weight calculation
- Automatic tare
- Product data memory
- Counting with multiple scales (reference weight scale)
Checking/totalling:
- Input of the target weight and tolerances
- Support by bar graph
- Product data memory
- Automatic result printout
- Totalling of each product
- Automatic or manual value acceptance
Application TRUCK
- Initial weighing and second weighing
- Database for vehicles, products, customers, carriers
- Loading function with target value, tolerance and overrun correction
- Printout of the weighing ticket
- Saving of the recorded gross value in the Alibi memory (licence required)
- Tandem scale possible
Further applications
IBC - for single-component filling tasks
ProRecipe XT® - for manual formulation and dispensing tasks
Versatile interface options
Ethernet TCP/IP, ModBus TCP, Profibus DP, DeviceNet, ProfiNet, Ethernet/IP and USB
You need help configuring your weighing or inspection-solution?
Simply send us your questions or requests via the contact form or give us a call. We will be happy to help you.
Request a consultation
Best Practice Get a first impression here
- Key facts
- Challenge
- Solution
- Customer
Tandem scale for dosing application Ensuring precision and quality for a versatile dosing station with two weighing points
Key facts
To meet the wide range of customer requirements and applications, MIXACO were exploring ways to provide an all-in-one station solution which can be used for both dosing smaller amounts of ingredients and weighing the corresponding mixing tank.
More about the challenge
Challenge
For the high, multi-layered requirements of its customers, the globally leading mixing technology provider MIXACO offers high-quality, functional solutions. MIXACO customers come from a variety of industries, such as the chemical, pharmaceutical, plastics and paint industries. Particularly in the paint or chemical industry, dust can be a real problem: A dust-free application is a parameter for precise weighing results.
More about the solution
Solution
The top stage of the dosing station features a high-resolution bench scale (e.g. Combics). This industrial weighing solution ensures safe dosing of smaller amounts of ingredients which can be filled directly into the mixing tank underneath. To ensure that all ingredients listed in the recipe are provided in just the right quantity, the bottom stage of the dosing unit has a 1,000 kg IF series floor scale which has a particularly low platform, enabling easy positioning and weighing of mixing tanks.
Both platforms are connected to the weight controller Maxxis 5. In addition to ensuring precise weight display in both weighing ranges, the weight controller uses bespoke software applications to facilitate multi-component dosing and allows for connection to master systems.
More about the client
Customer
MIXACO have been recognised as a leader in innovation in mixing technology for over 50 years. The company stands for high-end components, sturdy design and top-notch build quality - Made in Germany. Their broad range of products spans from container agitators through heating/cooling mixers for compounding to novel horizontal agitator systems. Their 35 offices and over 6,000 successfully installed units worldwide make MIXACO a global player in industrial mixing technology.
