Load cells INTECO®

The Inteco load cell is the logical further development of the well-known PR 6201. It opens up additional possibilities

Request this product Download datasheet

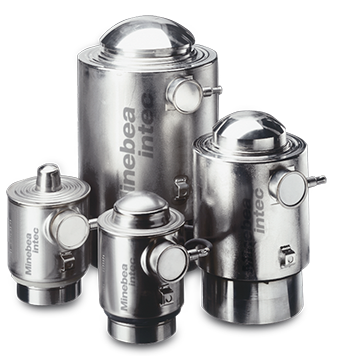

Compression load cell Inteco product image

High flexibility

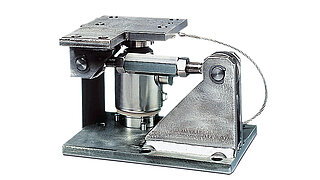

Large selection of accessories and installation kits for every possible application

Also as a digital weighing solution

Converter Connexx® for fast signal runtimes

German Quality

Durable, precise weighing solution with even higher corrosion resistance

Load ranges 500 kg to 75 t

Wide range of applications in silo and container weighing

Product details Compression load cell Inteco®

The load cell Inteco® represents a consistent enhancement to the well-known PR 6201. With an output signal of 2 mV/V, additional load levels of up to 75 t, higher accuracy classes (C6) and high-quality stainless steel, it has a wider range of potential applications. Accuracy classes D1 (0.04%), C3 (0.015%) and C6 (0.008%). As a digital weighing solution with the converter Connexx®, the load cell Inteco offers fast signalling times and optimal transparency in dosing and weighing processes. The Minebea Intec mounting kits FLEXLOCK minimise the effect of movements on the weighing result at the same time.

Applications

  • Fill quantity control
  • Filling and Dosing
  • Weighing

Certifications

  • EAC
  • ATEX
  • FM
  • IEC-EX
  • NTEP
  • OIML

Specifications

Product type

Product handling

  • Use analogue and digital
  • installation kits and accessories identical to PR 6201

IP protection class

  • IP 68
  • IP 69

Material

Stainless steel 1.4301


Product enhancements

Fitted with the converter Connexx®, the load cell Inteco® offers a whole host of possibilities:

  • The digital version guarantees fast signalling times for reliable dosing processes.
  • Thanks to the use of field bus communication, the cable junction box is no longer needed.
  • The standard interface CANopen ensures straightforward installation and calibration.
  • CANopen allows for extra-long communication paths of up to 200 m.
  • Weight values can also be generated individually – per load cell – meaning that defective load cells can be identified more easily.

You need help configuring your weighing or inspection-solution?

Simply send us your questions or requests via the contact form or give us a call. We will be happy to help you.

Request a consultation

Best Practice

  • Key facts
  • Challenge
  • Solution
  • Customer
Download Best Practice

Weighing in a hazardous area Acrylic manufacturer choose Inteco load cells for performance, accuracy and efficiency

Key facts

Perspex International manufacture acrylic sheet products which have endless applications across a multitude of industries. Accurate dosing is a crucial part of the production process.



More about the challenge

Challenge

When Perspex International started to experience problems with their 25 year old Minebea Intec PR 6201 load cell, they knew it was time to replace like for like. Their issues began with a software fault when the vessel was placed under full vac, as the system would read a negative weight resulting in a system lockdown.



More about the solution

Solution

The replacement of the predecessor PR 6201 with the new Inteco load cell went smoothly: accessories and installation kits could be adopted as far as possible. The performance and accuracy of Minebea Intec load cells lead to higher production efficiency.

  • High accuracy class (C6)
  • Corrosion-resistant stainless steel
  • Analogue output signal 2 mV/V

The customer opted for service support for the set-up and commissioning of the weighing system, as the necessary expertise for effective execution was not available on site.



More about the customer

Customer

Perspex International is one of the World’s leading producers of acrylic sheet products. PERSPEX® acrylic was invented in the early 1930s. Today, Perspex International has excellent research, development and manufacturing facilities based in the UK, partnered with a reliable distribution network that covers the globe.
