Weighing platforms and platform scales
When it comes to weighing heavy and bulky loads, industrial weighing platforms and platform scales are indispensable. Minebea Intec offers a wide range of weighing platforms and platform scales, including the MiNexx 3000 bench scale, the Combics®and Midrics®floor scales, the IF flat-bed scale and the IU pallet scale.
These are also suitable for use in potentially explosive atmospheres. These platforms are characterised by their hygienic design and, if required, are mobile thanks to their castors, guaranteeing low maintenance costs and a long service life.

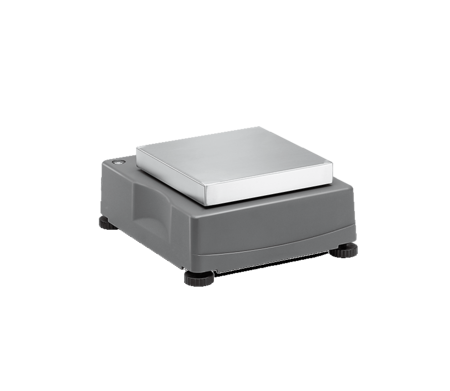

MiNexx 3000 bench scale with weighing range from 1.5kg to 300kg
The MiNexx® weighing platforms impress with their superior design and high configurability. Their innovative V-shaped design sets the standard in the market and enables increased weighing accuracy while providing excellent load cell protection. Its durable and robust construction ensures reliable performance in the most demanding environments. The MiNexx® platform scales offer a wide range of configuration options and can be customised for a variety of industrial applications.
- Innovative V-shaped design for increased weighing accuracy
- Available in 6 different platform sizes
- Robust construction for reliable performance
- Easy to clean
- Certificates: ATEX, IEC-EX, OIML
- Protection class: IP67, IP69K
- Materials: Stainless steel (1.4301 or 1.4404) and galvanised steel
- Versatile application possibilities: Counting, fill quantity control, dosing, statistical process control, weighing

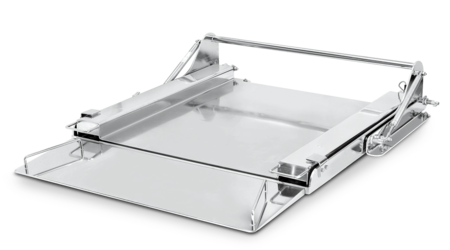

IF flat-bed scale with weighing ranges from 150 kg to 3,000 kg
The IF flat-bed scale was developed for use close to the floor in the smallest of spaces. Its very low profile contributes to safety and makes it very easy to clean. This platform scale is a high-quality, flexible and mobile weighing station and is used in the production process wherever reliable measurement results and hygienic solutions are required.
Its advantages and options are:
- Customised products on request
- Various material designs such as stainless steel
- Calibration version and Ex solutions
- Protection classes IP65, IP68 or IP69
- Resolution up to 30,000 d, in legal metrology up to 2 x 3000 e
- Platforms in a wide range of designs and dimensions

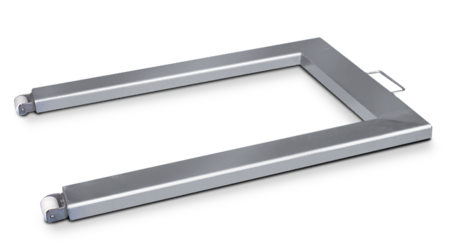

Pallet scale IU with weighing ranges from 300 kg to 3,000 kg
The IU pallet scale is available in 48 basic models to provide a customised weighing solution for a wide range of industrial requirements at any time.
A comprehensive selection of additional options rounds off the weighing platform series:
- Various material designs such as stainless steel
- Ex solutions
- Protection classes IP65 or IP68
- Resolution from 15,000 d to 30,000 d, 1 x 3,000 e and 2 x 3,000 e
- Insert plates and additional stands on request
- Customised products on request

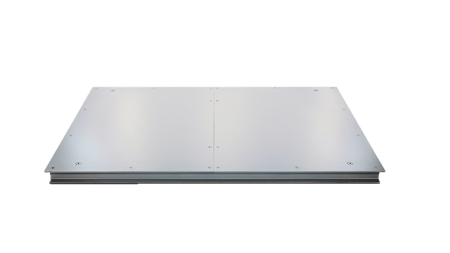

Combics® bench and floor scales with load ranges from 3 kg to 3 t
The Combics® bench and floor scales combine precision with variety. Our platforms are equipped with proven, precise strain gauge technology - individual variants with high-resolution electromechanical force compensation. The modular design allows maximum flexibility for the separate installation of indicator and platform as well as the targeted replacement of individual components.
The choice is yours:
- Three intuitive indicators for different requirements
- Various material designs such as stainless steel
- Readability from 0.001g to 200g
- Platforms in a wide range of designs and dimensions
- Various resolutions from 3,000 d to 340,000 d
- Verified version and Ex solutions
- A wide range of accessories, options and add-ons
- Optimum connectivity and integration into existing systems
- Easy-to-use application programmes

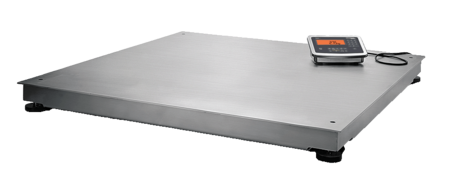

Midrics® bench and floor scales with load ranges from 3 kg to 3 t
The Midrics® bench and floor scales are robust, durable and easy to clean. Depending on the application, the indicator can be set up independently of the location of the platform or mounted on a pedestal.
The choice is yours:
- Wide range of indicators and platforms
- Protection classes IP65 or IP67/IP68
- Readability from 0.2 g to 200 g
- Verified version
- Various resolutions from 3,000 d to 15,000 d
- Large variety of interfaces
- Wide range of accessories, options and extensions
What characterises our weighing platforms and platform scales?
Our platform scales, heavy-duty scales, industrial scales and pallet scales are characterised by their high quality, reliability and precision. The platform scales are available in various sizes and designs and therefore offer the right solution for every requirement. The scales are robust and durable and are also suitable for use in difficult conditions.
A particular strength of our platform scales is their high accuracy, which ensures precise measurement results. The scales are able to reliably measure even the smallest differences in weight and therefore enable the exact weight to be determined. This is particularly important in areas such as the food and pharmaceutical industries, where maximum accuracy is essential.
Another advantage of our platform scales is their simple operation and wide range of applications. The scales are quick and easy to install and can be easily integrated into existing production and logistics processes.
Our platform scales are an excellent choice for companies and businesses that are looking for reliable scales that can be relied on for their measurement results and that also impress with their durability. Thanks to their wide range of applications and high accuracy, they are an indispensable tool in many areas of industry.
Frequently asked questions about weighing platforms and platform scales
What are platform scales?
Platform scales are industrial weighing devices used for weighing heavy and bulky loads. They offer a robust and reliable solution for various industrial applications.
What are the advantages of floor scales?
Floor scales are characterised by their large platform, high load capacity and mobility thanks to optional castors. They are ideal for weighing heavy loads and offer a long service life with low maintenance costs.
What makes the MiNexx® 3000 industrial scales special?
The V-shaped design of Minebea Intec's Minexx 3000 enhances accuracy, stability, and load management, ensuring precise and reliable measurements in diverse industrial environments. This design also contributes to durability, user-friendly operation, and space efficiency, making it a superior choice compared to other scales. It is robust, easy to clean and can be configured for different industrial applications.
Which weighing ranges do the weighing platforms from Minebea Intec cover?
The weighing platforms cover weighing ranges from 1.5 kg to 3000 kg, depending on the model and application.
What are the possible uses of parcel scales?
Parcel scales are ideal for shipping and logistics, as they enable the exact weight of parcels and S endings to be determined.
What functions do the Minebea Intec display units offer?
The indicators offer intuitive operation, high accuracy and flexible installation options that can be adapted to different industrial requirements.
What are the advantages of the Midrics® bench scale?
The Midrics® bench scale is robust, durable and easy to clean. It offers various indicator and platform designs as well as a high protection class.
How do the weighing platforms differ in terms of material and design?
The weighing platforms are available in various materials such as stainless steel and galvanised steel and offer protection classes up to IP69K for use in demanding environments.
What is the hygienic design of the weighing platforms?
The hygienic design facilitates cleaning and prevents contamination, making the platforms ideal for the food and pharmaceutical industries.
What certificates and protection classes do the weighing platforms have?
The weighing platforms are ATEX, IEC-EX and OIML certified and offer protection classes up to IP69K, making them suitable for use in potentially explosive atmospheres and under difficult conditions.
What does it mean when a platform scale is legal for trade?
A legal-for-trade platform scale meets the legal requirements for measurement accuracy and is authorised for use in commercial transactions. This means that the scale has been tested and certified to ensure that it provides accurate and reliable measurement results.
Are all Minebea Intec platform scales legal for trade?
Many Minebea Intec platform scales are legal for trade and fulfil the strict legal requirements. However, it is important to check the specific models and their certifications to ensure that they are suitable for the intended application.
How do I know if my Minebea Intec platform scale is legal for trade?
Verifiable scales are labelled with a corresponding test mark and a verification seal. You will also find information on verifiability and the corresponding certificates in the product documentation.
How often must a verifiable platform scale be checked?
The verification and recalibration of a platform scale is subject to legal regulations, which may vary from country to country. As a rule, a legal-for-trade scale must be re-verified every two years.
What happens if my platform scale is no longer legal for trade?
If a platform scale no longer meets the legal requirements or the calibration seal expires, it may no longer be used in commercial transactions. In such a case, the scale must be recalibrated and recalibrated if necessary.
