Weighing electronics Combics® 2 Ex (CAIXS2)

Combics® 2 Ex is specially designed for use in potentially explosive areas of your process chain

Request this product Download datasheet

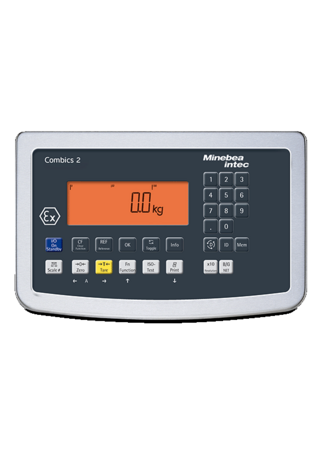

Product picture Weight indicator Combics CAIXS2

Usable in Ex zones

IECEx | ATEX Zone 1 | 2 | 21 | 22 and FM Class I, II, III Div. 1

Stainless steel housing

IP69K

LCD weight display

20 mm, 14 segments, 7-digit with status information, backlit

Interfaces

RS232 | 485 | 422; as well as fieldbus Profibus DP and 4 ... 20 mA

Product Details Combics® 2 Ex weighing indicator (CAIXS2)

The Combics® 2 Ex indicator is always the perfect choice when it comes to use in potentially explosive production environments and offers you a wide range of application options:

  • SQ Min (minimum weight)
  • Comprehensive functions for label printing and formatting
  • counting
  • Checking
  • totalising
  • Formulating
  • Classifying

A simple operating concept and clearly labeled keys help to avoid errors and facilitate familiarization. In addition, large amounts of data can be stored in the device thanks to an internal product data memory. Including scale connection for analog Ex platforms, e.g. Combics Ex, IU Ex, IF Ex or Ex load cells. Digital IS scales (xBPI) also available as an option.

The Combics® family of scales supports the production of high quality, attractive and safe products. The unrivaled accuracy of Combics® helps with the following tasks:

  • flexible production monitoring
  • cost reduction
  • improve product quality
  • optimise the use of raw materials

The design, which is based on durability and flexibility, stands for reliability. The hygienic design of our solutions ensures uncompromising compliance with the extremely important hygiene regulations currently in force. Combics® appliances are easy to clean and can therefore be used even under the most difficult conditions and with high safety requirements. The materials and surfaces used contribute significantly to reducing the risk of contamination. All Combics® balances meet the EHEDG requirements.

Certifications

  • FM
  • IEC-EX
  • NTEP
  • OIML

Applications

  • Classification
  • Counting
  • Filling and Dosing
  • Formulation
  • Weighing
